China Rain Test Device Water Spray Testing PLC Control for Electronics Manufacturer, Products
1 / 1
China Rain Test Device Water Spray Testing PLC Control for Electronics Manufacturer, Products

China Rain Test Device Water Spray Testing PLC Control for Electronics Manufacturer, Products

The rain test chamber has a significant impact on product aging, pigment fading, and metal corrosion. Therefore, the aging test is increasingly valued by industries such as rubber, plastics, chemical, automotive, and textile. There are many climatic and environmental factors, such as temperature, humidity, and rain, and the waterproof test chamber is an environmental testing equipment that simulates rain.

Send Inquiry

Product Description

Product Function
This product is suitable for testing whether the enclosure and sealing of electrical products can ensure good performance of equipment and components in rainy environments.
Description of Touch Controller
This product adopts scientific design, which enables the device to simulate water spray environments realistically. By using digital and frequency conversion control technology, the rainfall, rotation angle of the test rack, swing angle of the water spray swing, and swing frequency of the swing tube can all be automatically adjusted.
Standard Compliance
  • GB2423,38-90
  • GB4706.32-2004
  • IEC-529
  • GB4208-2008
    • Technical Parameters
    ModelTA-LY-1-7
    StandardGB4208-2008, etc

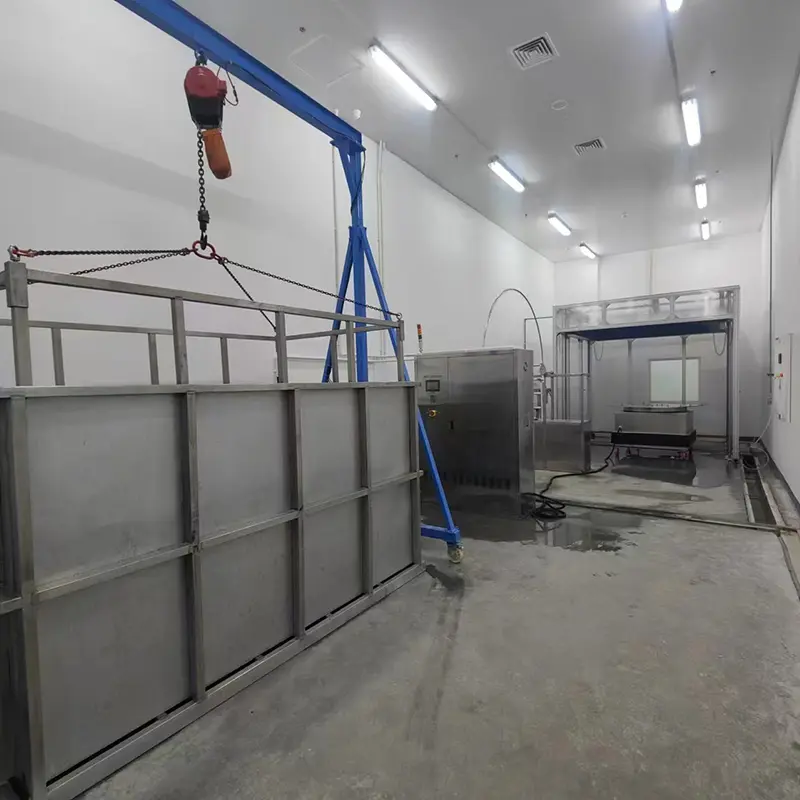

    Structural systemThe laboratory consists of a testing bench, a water storage tank, a control box, a turntable, and a sprinkler system
    Spray systemComposed of a water pump, water pressure gauge, and fixed nozzle bracket
    Overall dimensionsD 3000 x W 2500 x H 2500 mm (subject to actual dimensions)
    IP12 drip deviceDiameter 0.4mm
    IP34 Raining DeviceIP3：120°，IP4: 180°
    IP56 Rain Test DeviceØ 6.3mm；Ø 12.5mm
    Immersion test box IPX7See proposal
    Universal turntable system2 pieces, customizable size
    Control systemAdopt touch screen, PLC and stepper closed-loop control system
    Pump flow controlAdopt frequency converter for speed regulation
    Spray flow rateDirectly set on the touch screen via closed-loop feedback system
    FlowmeterElectronic Flow Meter
    Control functionDrip tray height, swing pipe angle, flow rate, turntable speed, time setting, automatic drainage and drying
    ProtectorVulnerability, water shortage, overload, and safety distance protection
    Power SupplyAC 380V 50HZ 5KW
    Frequently Asked Questions
    Q1: What is the primary use of the TA-LY-1-7 rain test chamber?
    It is specifically designed to test the waterproof sealing performance of electrical products and components, ensuring they function correctly under various rainy conditions.
    Q2: How accurate is the water flow control?
    The system utilizes an electronic flow meter and a frequency converter for closed-loop feedback, allowing users to precisely set and monitor flow rates via the touch screen.
    Q3: Does the device support international testing standards?
    Yes, the equipment complies with major standards including IEC-529, GB4208-2008, and GB4706.32-2004 for comprehensive ingress protection testing.
    Q4: Can the testing parameters be customized?
    Absolutely. Parameters such as the rotation speed of the turntable, rainfall intensity, swing pipe angles, and testing duration are all adjustable through the PLC control system.
    Q5: What safety features are integrated into the machine?
    The machine includes multiple safety protocols: water shortage protection, overload protection, safety distance sensors, and vulnerability protection to ensure operator and equipment safety.
    Q6: Is the drip tray operation manual or automatic?
    The system features advanced control functions that allow for the automatic height adjustment, drainage, and drying of the drip tray.
