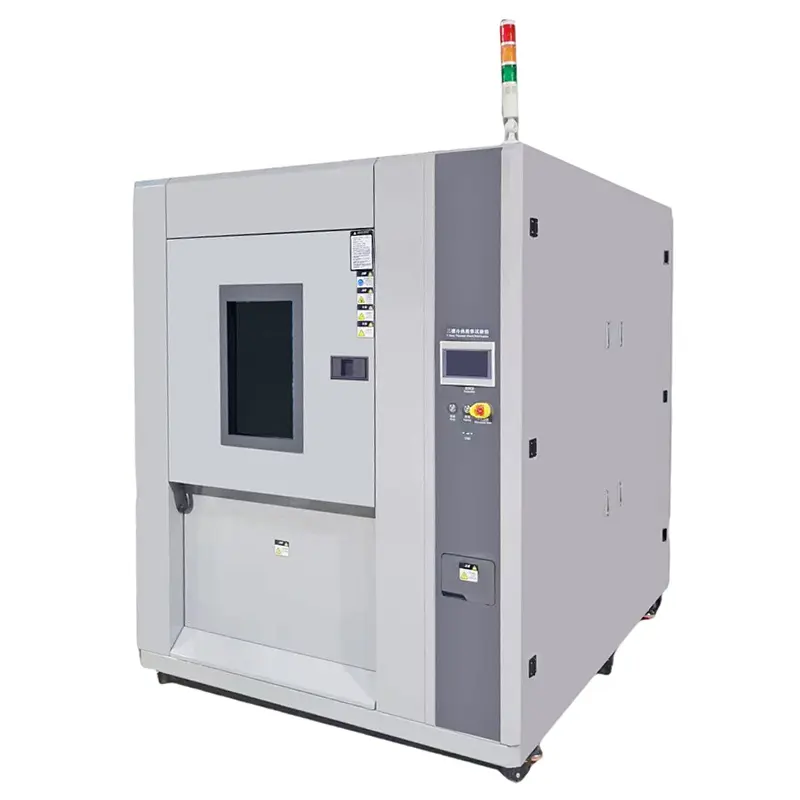

High-Quality Thermal Shock Chamber PLC Control for Batteries Electronics Manufacturers, Supplier
High-Quality Thermal Shock Chamber PLC Control for Batteries Electronics Manufacturers, Supplier
1 / 2
High-Quality Thermal Shock Chamber PLC Control for Batteries Electronics Manufacturers, Supplier
High-Quality Thermal Shock Chamber PLC Control for Batteries Electronics Manufacturers, Supplier

High-Quality Thermal Shock Chamber PLC Control for Batteries Electronics Manufacturers, Supplier

The cold and hot shock test chamber is a kind of testing equipment that simulates the rapid temperature changes in nature. It can test the physical and chemical damage received by products during the process of rapid temperature changes, thereby discovering potential quality problems of products and improving and optimizing them. The cold and hot shock test chamber is an indispensable testing equipment for materials industries such as metal, plastic, aerospace, aerospace, rubber, electronics, and batteries.

Send Inquiry

Product Description

★

Product Feature

01
Control system: PLC touch screen control
02
Heating system: Ceramic heating wire generates heat, which is forced to circulate horizontally by the fan wheel of the circulating motor, and the hot air reaches uniformity in the circulation Equipped with over temperature protection and automatic power-off function for overload.
03
Short circuit system: Industrial high current silver surface contactor short circuit system: 1 channel < 5mΩ resistor short circuit, and another channel with 80mΩ resistor short circuit (or other customized resistors).
04
Auxiliary function: Equipped with a visual explosion-proof glass window; Lighting; Smoke exhaust; Pressure relief and explosion prevention; Threshold protection; Emergency stop protection function; The mobile and fixed functions of the device.
✓

Test Standard

●
The test slot is completely stationary, and load wiring can be added from the test hole.
●
Energy storage method can avoid occupational injuries.
●
Adop touch color LCD display human-machine interface controller, easy to operate and learn.
●
High temperature control accuracy, all using PID automatic calculation control.
●
Choose the starting position and start cycling at high or low temperatures.
●
Equippied with reservation activation function.
●
Set the number of cycles and automatic defrosting.
●
Two box or three box impact can be selected.
●
Detailed explanation of abnormal or faulty display and troubleshooting methods.
i

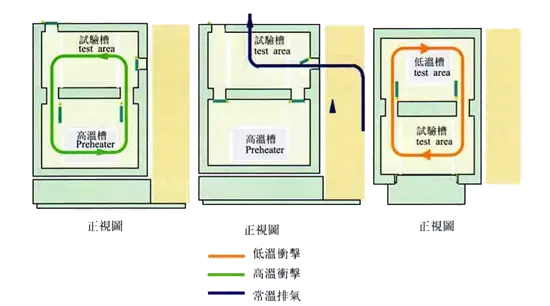

Cold and hot shock diagram

Cold and hot shock diagram
?

Frequently Asked Questions

What type of control system does the equipment use?
The equipment is equipped with a high-precision PLC touch screen control system for intuitive and easy operation.
How is the temperature uniformity maintained in the heating system?
It utilizes ceramic heating wires and a circulating motor fan wheel to force horizontal air circulation, ensuring uniform hot air distribution throughout the chamber.
Are there any safety protections for over-temperature or overload?
Yes, the system is equipped with over-temperature protection and an automatic power-off function to handle overload situations safely.
Can the short circuit system resistors be customized?
Yes, while it comes standard with 5mΩ and 80mΩ resistors, other resistance values can be customized according to specific testing requirements.
What auxiliary safety features are included for explosion prevention?
The device includes a visual explosion-proof glass window, smoke exhaust system, pressure relief mechanisms, and emergency stop protection.
Does the system support automatic defrosting?
Yes, the control interface allows you to set the specific number of cycles and activate the automatic defrosting function.
