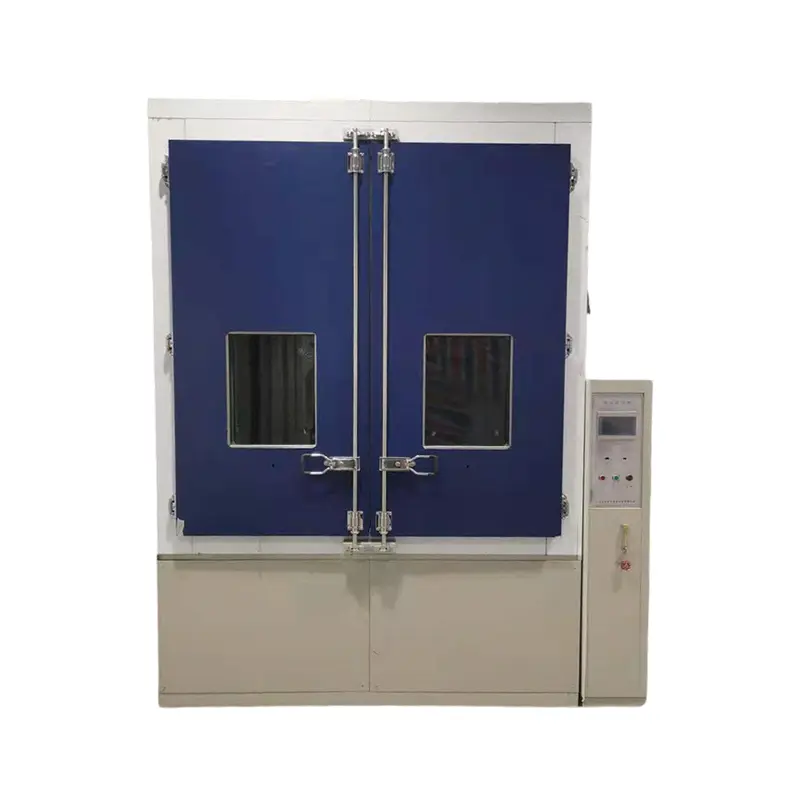

The sand and dust test chamber is suitable for conducting dust and dust resistance tests on various automotive parts. The test components include car lights, battery packs, instruments, electrical dust covers, steering systems, door locks, etc., as well as inspecting the sealing of products.

Send Inquiry

Product Description

🔹 Product Feature
With the rapid development of modern industrial technology, the application fields of electrical and electronic products are becoming increasingly broad, and the environmental conditions they experience are becoming more complex and diverse. Only by reasonably defining the environmental conditions of the product and selecting the correct environmental protection measures can we ensure that the product is not damaged during storage and transportation. Conducting artificial simulated environmental tests on electrical and electronic products is an essential part of ensuring their high quality. Artificial simulation environmental testing is a scientific summary of actual environmental impacts, characterized by typicality, standardization, ease of use, and comparability. The diversification of environmental conditions and the importance of environmental testing have also put forward stricter requirements for environmental testing equipment.
📜 Test Standard
GB/T2423.37-2006
GB 4208-2008
GB/T 4942.1-2001
GB 11564-2008
GB7000.1-2002/IEC60598-1:1999
GB/T10485-2008
ISO 20653-2006
📊 Technical Parameters
Model TA-FC-12m³
Standard GB4208-2008, ISO 20653-2006 etc.
Size (mm) 3M * 2M * 2M (D*W*H)
Temp range RT+10 ℃~60 ℃ (heating and baking system)
Sample rack load capacity ≤600KG
Humidity range ≤85%RH
Airflow velocity Not exceeding 2m/s
Dust concentration 2～4kg/m³
Dust spec Dry talc powder with square pores of 75um and metal wire diameter of 50um that can pass through a sieve
Vibration time 1S-999H adjustable
Dust blowing time 1S-999H adjustable
Dust dehumidification Electric heating dehumidification
Test sample pressure difference A is below atmospheric pressure by 1.98kPa or B has no pressure difference
Operation mode Program mode
Control system Embedded large screen LCD touch screen
Inner material Adopt imported SUS304 mirror stainless steel
Safety protection Fan overcurrent alarm; Power phase loss and phase sequence protection; Automatic shutdown and power cut-off in case of unexpected situations
Power Supply AC380V ± 10%, 50Hz ± 5%, 20KW three-phase four wire system + grounding wire
Frequently Asked Questions
What is the main purpose of artificial simulated environmental testing?
It is used to ensure high product quality by simulating real-world environmental impacts in a standardized and comparable way, helping to select correct protection measures for storage and transportation.
Which international standards does this equipment comply with?
The equipment meets various standards including ISO 20653-2006, IEC60598-1:1999, and several GB standards like GB 4208-2008 for environmental testing.
What is the maximum weight the sample rack can handle?
The sample rack is designed with a high load capacity, supporting test samples up to 600KG.
How is the dust concentration managed in the TA-FC-12m³ model?
The chamber maintains a dust concentration between 2 to 4kg/m³ using dry talc powder that passes through a specific 75um sieve.
What materials are used for the internal structure of the chamber?
The inner chamber is constructed using imported SUS304 mirror stainless steel for durability and precise testing results.
What safety protections are integrated into the control system?
It includes fan overcurrent alarms, power phase loss and sequence protection, and an automatic emergency shutdown system for unexpected situations.
