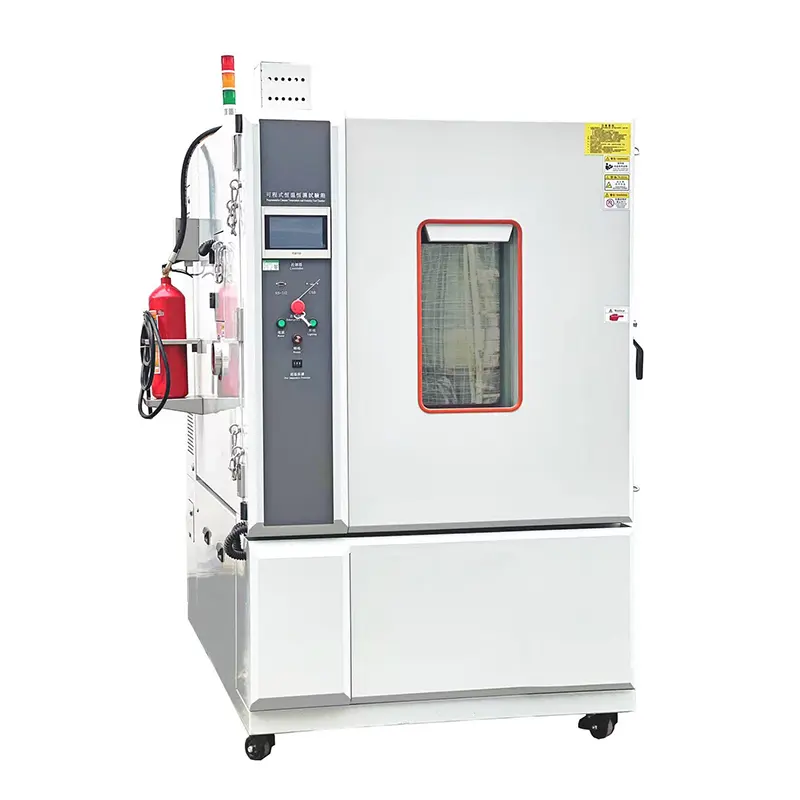

China Rapid temp change test chamber Supplier, Factory

It is suitable for cold resistance testing, adaptability testing under rapid or gradual temperature changes of electrical and electronic products and their components, especially for conducting Environmental Stress Screening (ESS) tests on electrical and electronic products.

The use of temperature acceleration techniques (cycle testing within the upper and lower limits of machine temperature, alternating expansion and contraction of the product) generates thermal stress and strain. By accelerating the stress, potential defects in the product (material defects, process defects, process defects) are exposed to prevent the product from being tested by environmental stress during use and causing failure. This has a significant effect on improving product delivery yield and reducing the number of repairs.

Product Description

Product Feature
Reasonable structure, fast cooling speed;
Fast frequency conversion regulation;
Imported refrigeration units with internationally renowned brand components for high reliability;
Touch screen with user-friendly human-machine interface, easy operation and maintenance;
Comprehensive protection: overheating, compressor overload, overpressure, oil pressure, and fan overload;
Liquid nitrogen cooling capability up to 30 ℃/min;
Customizable safety options: explosion-proof pressure relief ports and chains;
Optional features: Smoke exhaust, fire extinguishing, and salt spray alarm.
Temperature Control Range

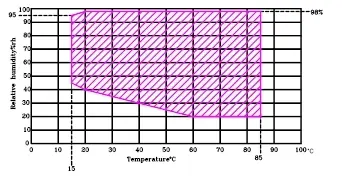

Temperature Control Range Chart
Testing Standard
  • GB10592-89 Technical conditions for high-low temperature test chambers
  • GB2423.1-1989 Low temperature test method
  • GB2423.2-1989 High temperature test method
Technical Parameters
Model (TAR-) 63L80L100L150L225L408L800L1000L
Control System Balance temperature and humidity control system
Temperature Range -70℃~150℃ (Rapid change -55℃~85℃; customizable linear/nonlinear 5-20℃/min)
Fluctuation/Deviation Temp Fluctuation: ±0.5℃ | Temp Deviation: ±3.0℃ | Humidity Deviation: ±3%R.H
Inner Material SUS304 Advanced stainless steel
Outer Material Cold rolled steel plate with electrostatic spraying or SUS304 stainless steel
Insulation High density polyurethane foam and glass fiber
Rate of Change 5, 10, 15 ℃/min (Optional)
Controller LCD color touch screen, Chinese/English display, program & communication functions
Power Supply AC380±10% 50HZ Three-phase four wire + PE
Frequently Asked Questions
What is the standard temperature range of the TAR series?
The standard temperature range is -70℃ to 150℃, with rapid temperature change capabilities between -55℃ and 85℃.
Can the cooling rate be customized for specific testing needs?
Yes, the equipment supports linear or nonlinear customization throughout the process at rates of 5℃/min, 10℃/min, 15℃/min, or 20℃/min. Liquid nitrogen cooling can even reach 30℃/min.
What safety features are included in these test chambers?
The chambers include non-fuse switches, compressor overpressure/overheating protection, fan overload protection, dry burning protection, and water shortage alarms. Explosion-proof ports can also be customized.
What materials are used in the construction of the chamber?
The interior is made of SUS304 advanced stainless steel, while the exterior uses cold-rolled steel with electrostatic spraying or optional SUS304 stainless steel for maximum durability.
What standard accessories come with the equipment?
Standard accessories include a three-layer vacuum observation window, a 5cm test hole, two experimental racks, internal illumination, mobile work wheels, and a communication interface.
