01

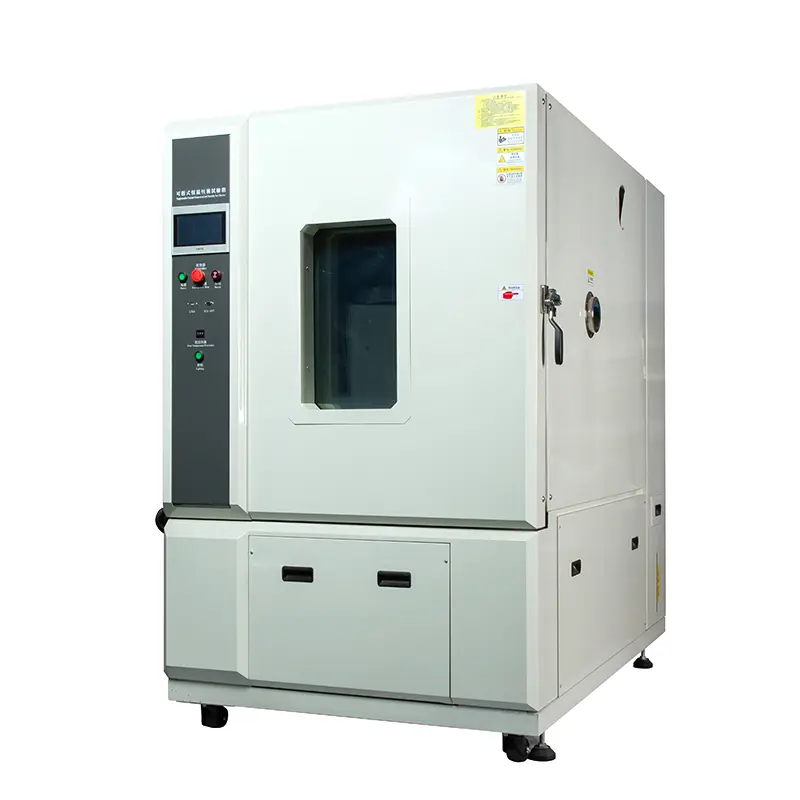

The outer chamber of the host housing for constant temperature and humidity testing is made of SECC steel plate spray painted and processed by CNC machine tools. It has a beautiful and elegant appearance and uses a non-reactive handle for easy operation.
02
Adopting a large LCD touch screen, it is larger, more intuitive, easy to operate, stable to run, and more energy-efficient than other screens.
03
Adopting a microcomputer temperature and humidity controller, the temperature and humidity control are precise and reliable.
04
The large observation window is equipped with lighting to keep the inside of the box bright, using three-layer vacuum tempered glass to observe conditions clearly at any time.
05
Equipped with an independent temperature limit alarm system, it automatically interrupts when the temperature exceeds the limit, ensuring safe operation.
06
Test holes with a diameter of 50mm (or 100mm) on both sides can be used for external testing power or signal lines.
07
The bottom adopts high-quality PU movable wheels that can be fixed for stability and mobility.
08
The new programmable design can save an average of 45% electricity, 50% reaction time, and 80% water consumption compared to traditional models.
09
The equipment can be customized with explosion-proof pressure relief ports and explosion-proof chains for enhanced safety.
10
Smoke exhaust, fire extinguishing, salt spray alarm and other functions can be customized according to requirements.
◈

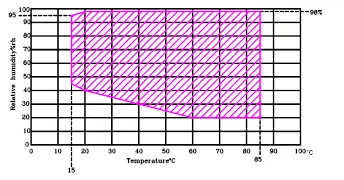

Temperature Humidity Control Range
- GB/T 2423.1-2001 Test A: Low temperature test method
- GB/T 2423.2-2001 Test B: High temperature test method
- GJB 150.3-1986 High Temperature Test
- GJB 150.4-1986 Low Temperature Test
- IEC68-2-1 Test A: Cold
- GB 11158 Technical Conditions for High Temperature Test Chambers
- GB/T 2423.2 Basic Environmental Testing Procedures - Test B: High Temperature
- GB/T2423.4-93 Alternating Damp Heat Test Method
- GB/T2423.3-93 Constant Damp Heat Test
- GB 31241-2022 Safety Requirements for Lithium-ion Batteries
| Model |
TAR5-150L-F |
| Inner Size |
W500*H600*D500mm |
| Outer Size |
W700*H1760*D1600mm |
| Temp Range |
-40℃ → +150℃ |
| Temp. Fluctuation |
±0.5℃ |
| Temperature Deviation |
±2.0℃ |
| Measurement Standard |
Measure at 1/10 distance from the inner box wall |
| Heating Rate |
-40℃ → +85℃ (5℃/min Average nonlinear no-load) |
| Cooling Rate |
+85℃ → -40℃ (5℃/min Average nonlinear no-load) |
| Load Situation |
No-load |
| Humidity Range |
20% ～ 98%R.H. |
| Humidity Fluctuation |
±2.5%R.H. |
| Humidity Deviation |
>75%RH (+2,-3%RH) | <75%RH (±5%RH) |
?
Frequently Asked Questions
Q1: What is the temperature range of this test chamber?
A: The chamber supports a wide temperature range from -40℃ to +150℃, suitable for various environmental simulation tests.
Q2: How efficient is this equipment in terms of energy consumption?
A: Our programmable constant temperature and humidity test chamber is highly efficient, saving an average of 45% electricity and 80% water consumption compared to traditional models.
Q3: Can the equipment be customized for specific safety requirements?
A: Yes, we offer customization options such as explosion-proof pressure relief ports, explosion-proof chains, smoke exhaust, and fire extinguishing functions to ensure laboratory safety.
Q4: What standards does this test chamber comply with?
A: It complies with multiple international and national standards, including GB/T 2423, GJB 150, IEC68-2-1, and GB 31241 for lithium-ion battery safety.
Q5: How can I observe the samples inside during the test?
A: The chamber features a large observation window made of three-layer vacuum tempered glass and built-in lighting, allowing you to clearly monitor the test conditions at any time.
Q6: What is the heating and cooling rate of the TAR5-150L-F model?
A: Both the heating and cooling rates average 5℃/min (nonlinear no-load) for the range between -40℃ and +85℃.
